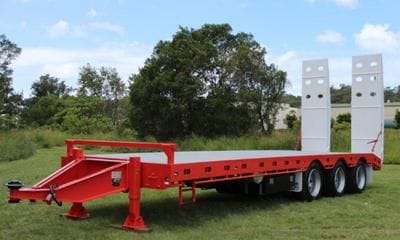

Triaxle Tag Trailers

Standard Inclusions:

  • ABS braking system
  • Main Beams 385mm with pre-camber, profile cut and fabricated
  • Cross Member 100×50 RHS through main beams
  • Coaming Rails 250mm Profile cut, high tensile 10mm plate
  • Deck 5mm Checker Plate
  • Deck 8.4m Beaver Tail 0.6m
  • Drawbar 1650mm Deck front to Centre of Flying Saucer
  • Tubeless 255/70R22.5
  • All Narva LED lights
  • 2-speed internal geared landing legs
  • Sandblast & Paint 2pack Dupont - single colour
  • All trailers have hydraulic ramps (850mm wide) 12V or 24V Power Pack
  • Axles 5-spoke or 10-stud (11t capacity)P1030983
  • Axles & Suspension all supplied by Colrain
  • Side ladder
  • 50L Under body water tank Brushed Aluminium
  • Spare Wheel Carrier

Download our Trailer Brochure

Optional Extra:

  • Suspension 33t capacity

Download our Trailer Extras Brochure



ATM (Aggregate Trailer Mass) Ratings Available:

  • Flying Saucer 32 tonne
  • Pintle Hook 29 tonne
  • Bartlett Ball 22.1 tonne
  • Total Price:  2016 Base Model from  $46,273 plus GST

Click here to view our Trailer Gallery
