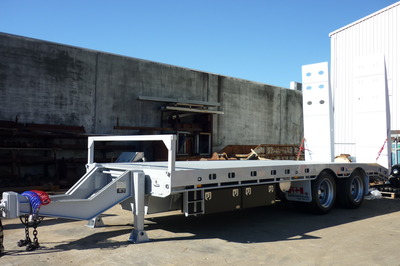

Tandem Axle Tag Along Trailer



Standard Inclusions:

  • ABS braking system
  • Main Beams 385mm with precamber, profile cut and fabricated
  • Cross Member 100×50 RHS through main beams
  • Coaming Rails 225mm Profile cut, high tensile 10mm plate
  • Deck 5mm Checker Plate
  • Deck 7.0m Beaver Tail 0.6m
  • Drawbar 1650mm Deck front to Centre of Flying Saucer
  • Tubeless 255/70R22.5
  • All Narva LED lights
  • 2-Speed internal geared landing legs
  • Sandblast & Paint in 2pack Dupont - Single colour
  • Side ladder
  • All trailers have Hydraulic Ramps (850mm wide) 12V or 24V Power Pack
  • Axles 5-spoke or 10-stud (11t capacity)
  • Axles & Suspension all supplied by Colrain
  • 50L under body water tank Brushed Aluminium
  • Spare Wheel Carrier

Download our Trailer Brochure

Optional Extras:

  • Suspension 22t capacity

Download our Trailer Extras Brochure

ATM (Aggregate Trailer Mass) Ratings Available:

  • Flying Saucer 28.5  tonne
  • Pintle Hook 24.5 tonne
  • Bartlett Ball 19.8 tonne
  • Total Price: 2016 Base Model from $40,264 plus GST

Click here to view our Trailer Gallery

** price does not include registration, delivery, fees & charges or optional extras
